Silicon Steel

Silicon steel is an iron alloy tailored to produce specific magnetic properties: small hysteresis area resulting in low power loss per cycle, low core loss, and high permeability.

Silicon steel is usually manufactured in cold-rolled strips less than 2 mm thick. These strips are cut to shape to make laminations which are stacked together to form the laminated cores of transformers, and the stator and rotor of electric motors.

Electrical steel made without special processing to control crystal orientation, non-oriented steel, usually has a silicon level of 2 to 3.5% and has similar magnetic properties in all directions, i.e., it is isotropic. Cold-rolled non-grain-oriented steel is often abbreviated to CRNGO.

Grain-oriented electrical steel usually has a silicon level of 3% (Si:11Fe). It is processed in such a way that the optimal properties are developed in the rolling direction, due to a tight control (proposed by Norman P. Goss) of the crystal orientation relative to the sheet. The magnetic flux density is increased by 30% in the coil rolling direction, although its magnetic saturation is decreased by 5%. It is used for the cores of power and distribution transformers, cold-rolled grain-oriented steel is often abbreviated to CRGO.

CRGO is usually supplied by the producing mills in coil form and has to be cut into "laminations", which are then used to form a transformer core, which is an integral part of any transformer. Grain-oriented steel is used in large power and distribution transformers and in certain audio output transformers.
CRNGO is less expensive than CRGO. It is used when cost is more important than efficiency and for applications where the direction of magnetic flux is not constant, as in electric motors and generators with moving parts. It can be used when there is insufficient space to orient components to take advantage of the directional properties of grain-oriented electrical steel.

Steel Rolls
Silicon Steel 2

CHARACTERISTICS

The addition of silicon in iron greatly improves the physical properties of electrical steels. Electrical steels have the following desirable properties for supporting the generation, distribution and consumption of electricity:

  • High permeability - increased capacity to support magnetic fields
  • Low magnetostriction - low tendency to expand or contract in magnetic fields
  • High electrical resistivity - lessens the core loss by reducing the eddy current component
  • Decreased hysteresis loss - low hysteresis loss means less wasted energy in the form of heat from alternating magnetising force
Silicon Steel Application 1

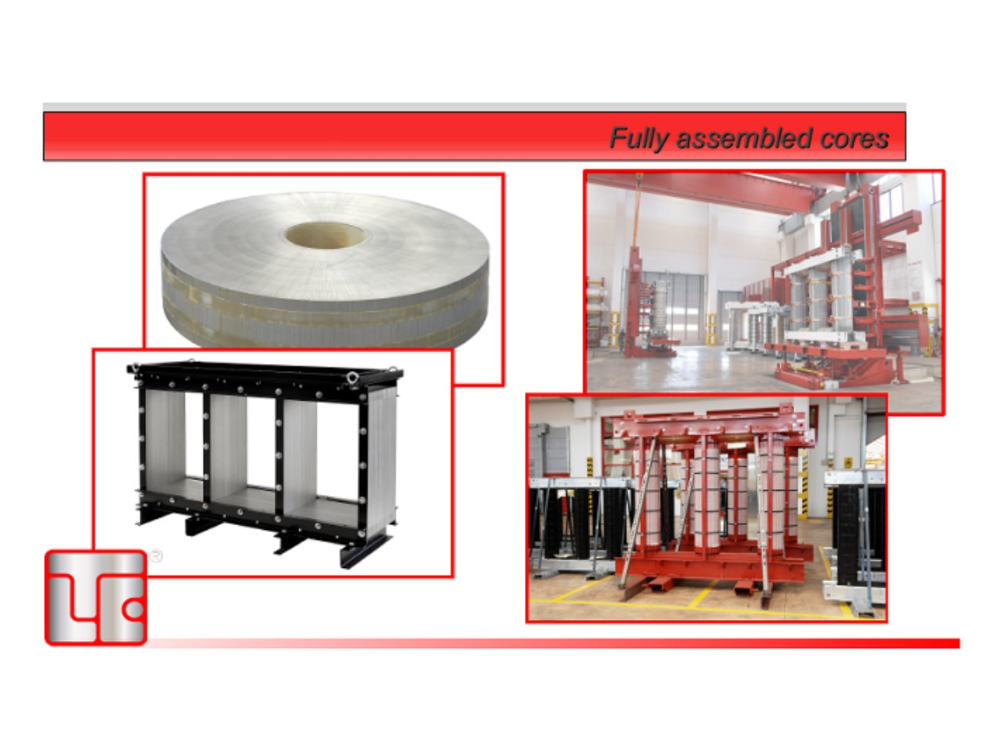

Silicon Steel Assemble

APPLICATIONS

  • EI Core
  • Transformer core
  • Cut laminated cores
  • Distribution and power transformers

Specifications

  • Steel Roll

    Common Stock

    UPON INDENT

  • Measurement

    Corresponding Standard

    JAPAN - JIS 2552
    CHINA - GBT 2521
    U.S.A - ASTM A677
    EUROPE - EN 10106

  • Dimensions

    Applicable Nominal Thickness

    Grain Oriented: 0.23MM - 0.35MM
    Non-Grain Oriented: 0.35MM - 0.65MM

  • Width

    Width Available

    50MM ~ 1524MM

  • Stack

    Specifications

    Click here for detailed specifications sheet
